DSP chip + position sensorless detection technology + speed closed loop + current closed loop space vector control technology + S-ADRC algorithm

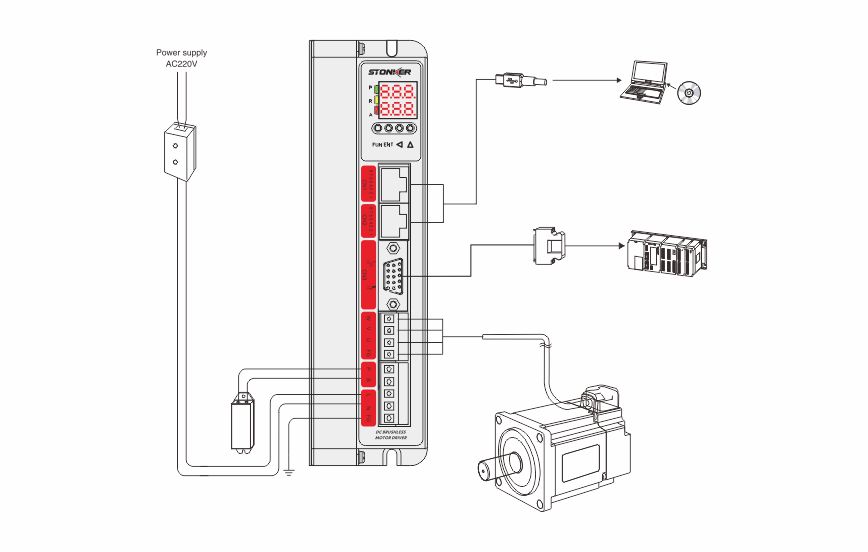

Support CAN, RS485 bus, RS232/RS485 of technology ModBus protocol, communication supports up to 255 parallel use

Automatic identification of motor parameters, suitable for various three-phase motors (asynchronous motors, three-phase stepper motors, etc.)

Speed range: 30RPM~ rated speed, up to 30,000PRM, support user customization

Complete fault diagnosis and protection measures with torque limiting

More than 20 monitorable items such as current speed and current current

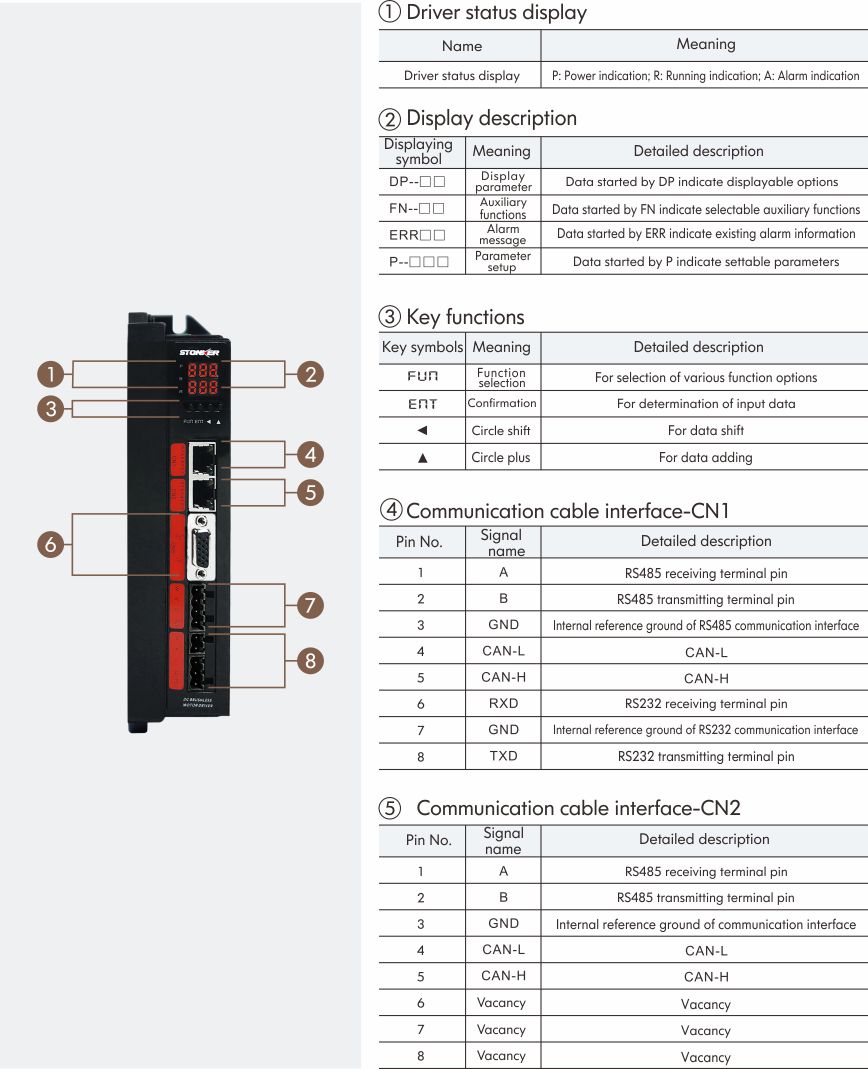

6-digit digital display, 4 function buttons

Function range: 50~5000W
